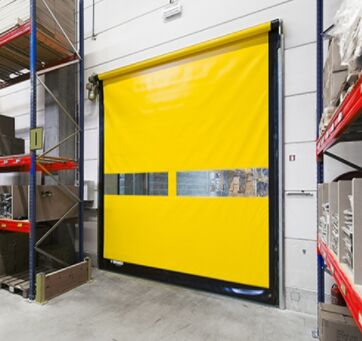

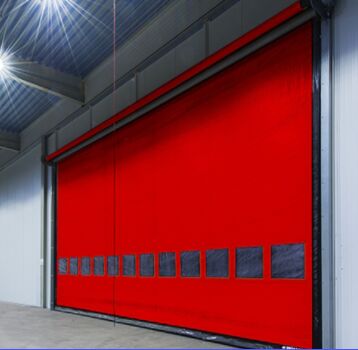

Fast Automatic High Speed PVC Roll Up Rapid Shutter Door 304 Stainless Steel Speed Rolling Freezer Shutter Cold Storage Door

2026 Fast Automatic High Speed PVC Roll Up Rapid Shutter Door 304 Stainless Steel Material Speed Rolling Freezer Shutter Cold Storage Door

Product Description:

Industrial production scenarios

1. Entrance/exit areas and partitions of various types of industrial workshops / production lines are suitable for factories engaged in automobile manufacturing, electronic processing, mechanical processing, plastic production, etc. The doorways between the workshops and the passages, as well as between different production line partitions, can all be used. The rapid opening and closing can reduce the air exchange between the workshop and the outside, maintaining a constant temperature and humidity inside the workshop (such as the dust-free environment of an electronic workshop, the process temperature of a coating workshop), and at the same time avoiding cross-contamination of production dust; PVC curtain fabric is wear-resistant and resistant to slight impacts, suitable for frequent passage by forklifts and trolleys, and has a fast opening and closing speed (generally 0.6-1.5m/s), significantly reducing vehicle waiting time and improving production efficiency.

2. Industrial cold storage / cold chain processing workshop entrance / exit for cold chain storage and low-temperature food processing workshop / cold storage doorways are core models suitable for use. PVC curtain fabric is combined with double-layer insulation curtains + sealed bottom beams, which can effectively reduce heat loss and lower the energy consumption of refrigeration equipment; rapid opening and closing avoid the problem of frosting and sudden temperature changes caused by the prolonged opening of the doorway, which is suitable for the frequent entry and exit of cold chain forklifts, taking into account both insulation and passage efficiency.

Features:

Parameter : itemSpecific specifications
Maximum size : 5000x5000 millimeters (widthxheight)
Wind pressure : 4-5 levels of wind (refer to the size of the door)
Opening speed : 0.0 - 1.5 meters per second (speed adjustable, depending on the size ofthe door)
Closing speed : 0.8 meters per second (speed adjustable)
Working temperature : -35 to 60°C
Thickness of PVC curtain fabric :  0.8 - 1.2 millimeters
The color of the curtain : The colors available include blue, grey, white, yellow, etc.
Frame material : Cold-rolled painted steel plate, 304 stainless steel, aluminum alloy
Voltage : 220V/50Hz
interlock function : Support
Interlocking function : Support (can provide signals for door opening and closing tocompletion)
Switching mode : Standard buttons, optional features include radar, geomagnetic sensor,Bluetooth, pull cord, and remote control.
Safety protection : Safety photoelectric (standard feature), safety bottom edge (optional)

Key attributes:

Packing and Shipping:

FAQ:

What is the minimum order quantity?
Unrestricted, accepting orders of 1 set or more.
What is the delivery time?
About 15-30 days, can be expedited.
What is the packaging method for the package?
Packaged in wooden crates.
What payment terms/methods are accepted?
Support wire transfer, letter of credit, Western Union remittance, credit card, etc. Other payment methods can be discussed and negotiated.
Is it difficult to install the door? What if it cannot be installed?
Easy to install, providing installation videos and manuals, engineers can provide remote guidance and online support.
Can personalized design be done based on the on-site environment or project drawings?
Products and installation plans can be customized according to the on-site environment, or directly produced according to project drawings.
