High Speed 0.4m/s Insulated Sectional Overhead Door 42mm PU Sandwich Panel R-Value 13.73 Energy Efficient
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | DESEO |
| Sertifika: | CE/ISO9001:2008 |
| Model numarası: | SD6100 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 adet |
|---|---|
| Fiyat: | USD 850-1200/UNIT |
| Ambalaj bilgileri: | koruyucu film ile kontrplak paketi |
| Teslim süresi: | 10-25 Gün |
| Ödeme koşulları: | T/T, L/C |
| Yetenek temini: | ayda 200 birim |
|
Detay Bilgi |
|||
| Malzeme: | Galvanizli Çelik, Alüminyum Alaşımlı | Panel kalınlığı: | 42MM |
|---|---|---|---|
| Panel Genişliği: | 500 mm | Çekirdek malzemesi: | Poliüretan Köpük 48kg/m3 |
| R-Değeri: | 13.73 | Açma hızı: | 0.4m/s |
| Operasyon: | Elektrikli, Uzaktan Kumandalı, Manuel | Isı koruması: | 4,5W/msaat |
| Rüzgar Direnci: | Beaufort Ölçeği 11, 28m/s | Ses yalıtımı: | 24 dB |
| Yangın Geciktirme: | 1. Örnek siparişler memnuniyetle karşılanır; 2. EXW/FOB: en az 20 GP'; 3. Karışık modeller kabul | Servis ömrü: | 10 yıl |
| Maksimum boyut: | 12m x 8m | Yüzey İşlem: | Toz Boya 30um |
| Başvuru: | Endüstriyel, Depo, Garaj, Ticari | ||
| Vurgulamak: | High Speed 0.4m/s Insulated Sectional Door,42mm PU Sandwich Panel Overhead Door,Energy Efficient R-Value 13.73 Sectional Door |
||
Ürün Açıklaması

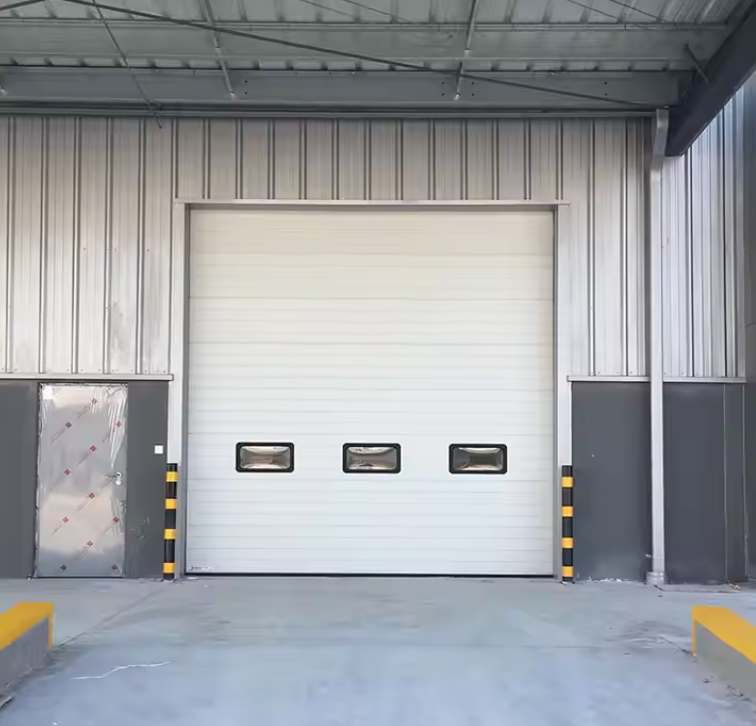

Energy Efficient High Speed Insulated Sectional Overhead Door
The SD6100 insulated sectional overhead door combines rapid 0.4m/s opening speed with industry-leading thermal performance. Designed for high-traffic industrial and commercial environments where both speed and energy efficiency are critical.
Key Features
- Industry-Leading R-Value 13.73: 42mm polyurethane foam sandwich panels deliver exceptional thermal insulation, reducing HVAC costs and maintaining stable indoor temperatures year-round.
- 0.4m/s High Speed Operation: Minimizes air exchange and heat loss during frequent open/close cycles, ideal for busy logistics centers and loading docks.
- 48kg/m3 High Density PU Core: Superior structural rigidity with excellent noise dampening at 24 dB sound insulation.
- Class A Fire Retardation: Meets stringent fire safety standards for industrial facilities.
- Beaufort 11 Wind Resistance: Engineered to withstand wind speeds up to 28m/s for exposed installations.
Technical Specifications
| Material | Galvanized Steel, Aluminum Alloy, Color Coating Plate |
| Panel Thickness | 42mm |
| Panel Width | 500mm |
| Core Density | 48kg/m3 Polyurethane Foam |
| R-Value | 13.73 |
| Opening Speed | 0.2-0.4m/s |
| Guide Rail Thickness | 2mm Galvanized Steel |
| Surface Treatment | Powder Coating 30um |
| Heat Preservation | 4.5W/m.h |
| Sealing | EPDM Rubber All-Round Sealing |
| Max Dimension | 12m x 8m |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years / 100,000 cycles |
| Emergency Operation | Manual Hoist Chain |
Safety Systems
- Finger-protection (pinch-resistant) panel joint design
- Airbag safety edge for obstacle detection
- Door anti-fall device
- Wire rope anti-break protection
- Torsion spring balance system with spring brake device
Applications
Ideal for logistics warehouses, distribution centers, manufacturing plants, automotive workshops, and commercial garages where high-traffic access and thermal efficiency are priorities.
